Apex Royale Range

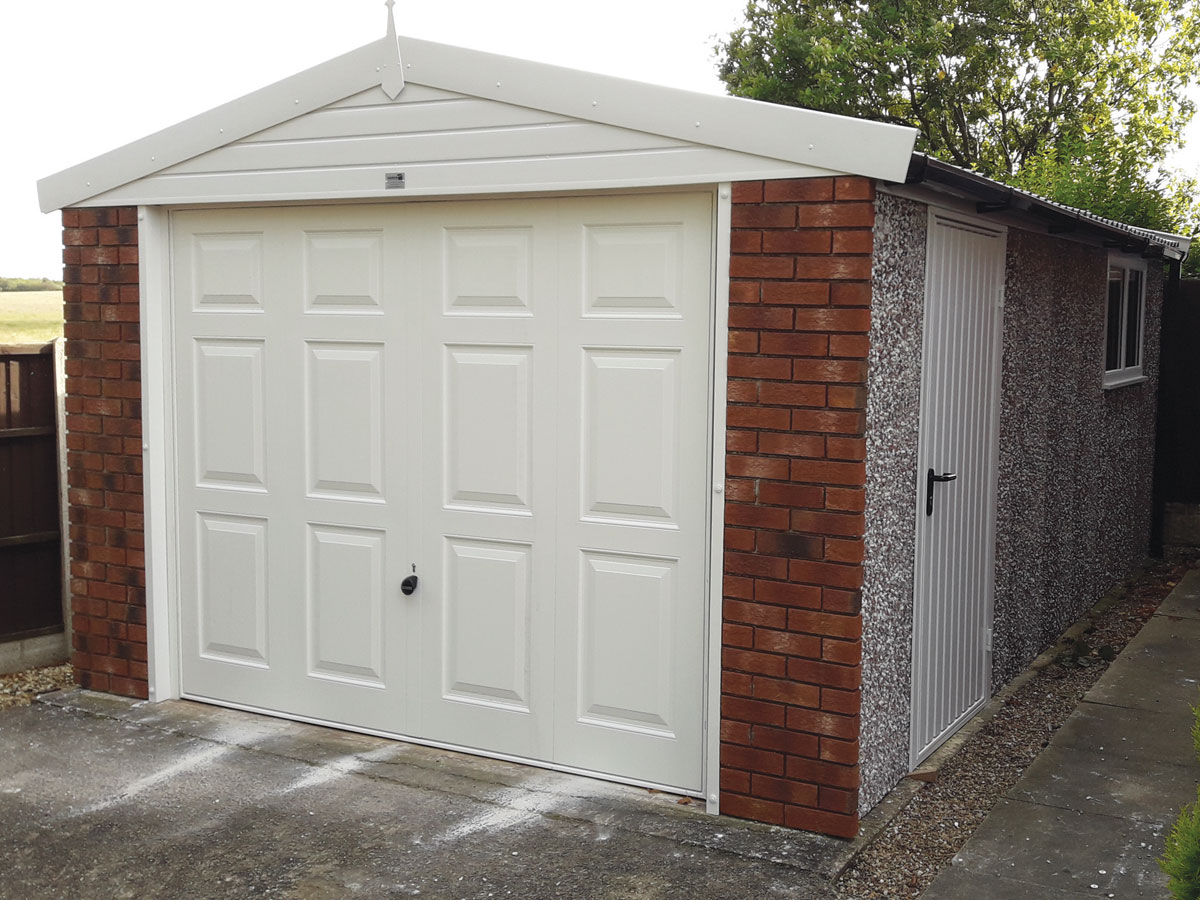

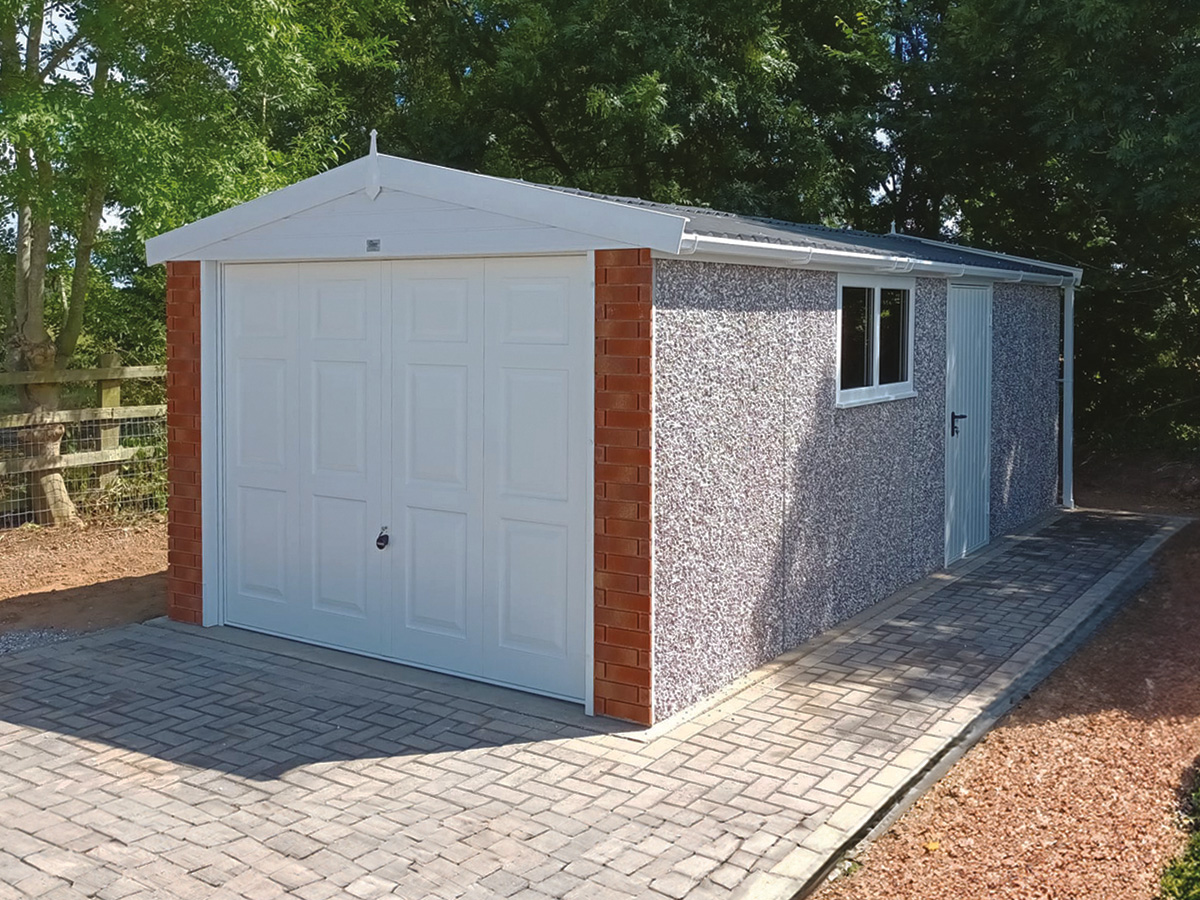

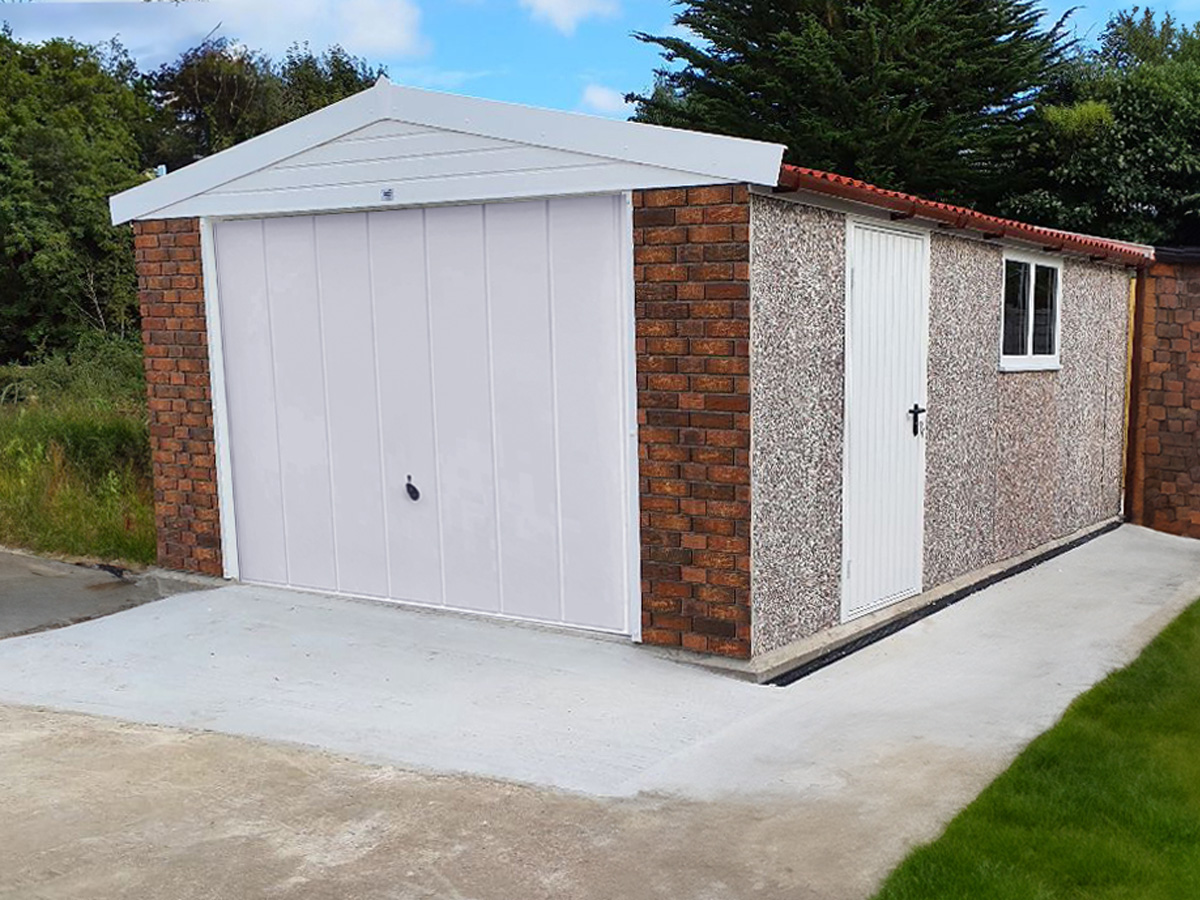

Apex Roof Garages - Royale Range

For the more discerning customer we offer the Royale range of garages which boasts an unrivalled array of special features as standard.

apex royale

The Apex roof – Royale range features, in addition to the standard specification, a top quality Georgian styled up and over door, (complete with 4pt locking) TrueBrick front posts (Choose from 5 different brick finishes), maintenance-free PVC-U fascias and 4′ maintenance-free PVC-U fixed window, white vertically ribbed steel personnel door and spectacular looking Spanish Red roof sheets with matching close fitting ridge (Choose from another 4 different roof colours), White PVCu guttering and downpipe to both sides and eaves filler.

Attractive Multi Spar aggregate gives an external appearance that will blend with virtually any property.

Fitted with market leading Hormann up and over doors, pre-framed to give consistent performance over the lifetime of the garage.

The fibre cement Apex roof drains to both sides, utilising 5″ profile coloured roof sheets up to 20% thicker than many competitors. See the Optional Extras panel on the right to choose from any of the four other colours available. White PVCu guttering is fitted as standard (Choose Black or brown to match your house, if required. All timber used in the construction of our concrete sectional garages is factory treated by dipping in preservative.

Available in single and double garages, and with the option of Extra Height if required.

  • Spanish Red cement fibre roof sheets with matching ridge
  • True Brick Front posts in 6 design colours
  • Georgian style door with 4 point extra security locking bars (up to and including 9′ wide door only)
  • White PVCu fascias
  • White PVCu double glazed 4′ wide fixed window
  • Hormann 3′ wide steel personnel door (vertical design)
  • White PVCu guttering
  • Foam filler to the eaves
  • The Ultimate ‘Value for money’ package
All Hanson Garages concrete panels feature cleverly overlapped and bolted joints along with an internal mastic seal for the ultimate weatherproofing.

Hanson Garages are committed to using only the highest quality products within our buildings.

The Apex Royale comes with a Hormann Georgian design up and over door as standard with 4 point locking bars for extra security. (4 point locking not needed on electric operated doors)

This is why we have chosen Hormann, Europe’s No1 manufacturer of up and over doors. The range of Hormann doors offer superior design, engineering excellence and outstanding security. Every Hormann up and over door produced is the result of more than 50 years experience. They are fitted, as standard, fully retractable with a steel fixing frame for extra rigidity. The doors are galvanized steel, high quality powder coated in white to provide a maintenance free silky finish. Doors are available in various BS RAL colours upon request.

brown geogian Golden oak horizontal likley virtical rosewood virtical

Personnel Doors

Available in the following options.

A 3′ Hormann white steel personnel door comes as standard with the Apex Royale range.

All doors can be hinged left or right and are opening out as standard.

4ft steel vertical delux timber optional 3 point rosewood steel georgian steel vertical

Roller Doors

Roller Doors can be fitted to all our buildings in place of the up an over door.

electric roller door manual roller door

Side Hinged Doors

steel hinge side door

Sectional Doors

Sectional doors open vertically upwards meaning you can make full use of the space in front of the garage for additional parking.

geogian horizontal rib door sectional_door_illustration



A 4’ fixed PVCu window is supplied as standard on single garages and two windows on double garages.

The timber windows can be made opening on request (not available in 2’ wide). PVCu windows are available in 2’ and 4’ widths, which can be opening or fixed. Choose one or more of the following windows to match your garage.

Rosewood-fixed-opening golden-oak 4ft-timber-opening 4ft-timber-fixed 4ft-pvcu-fixed 4ft-pvc-pvcu-opening 2ft-timber-fixed 2ft-PVCu-White

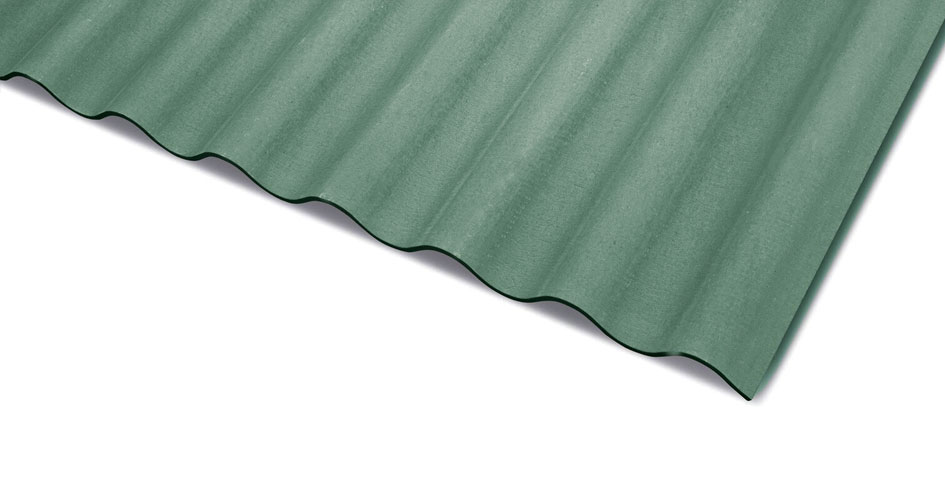

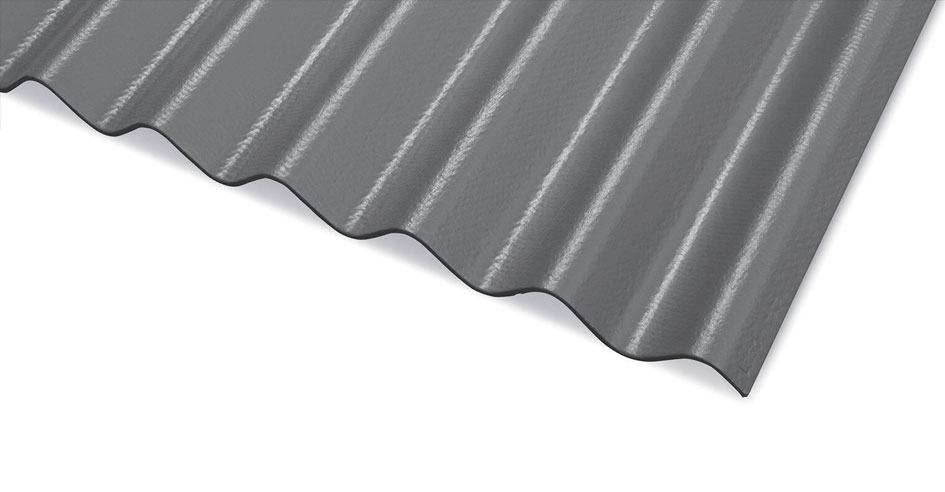

Roof Options

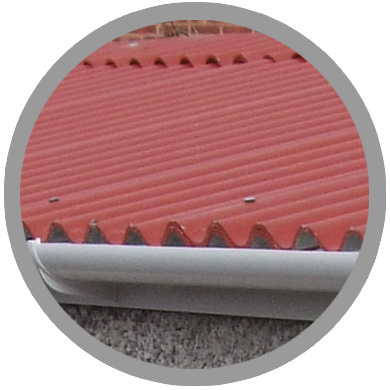

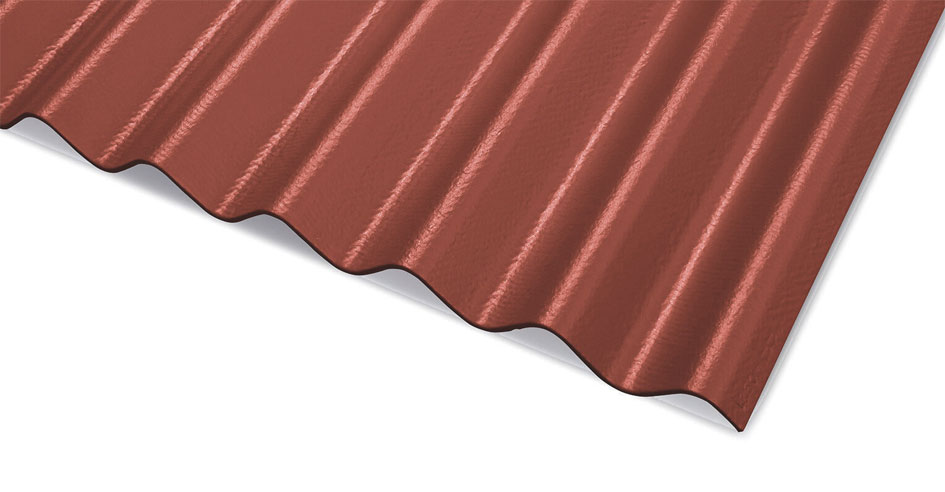

The Apex Royale range comes with Spanish Red cement fibre roof sheets as standard. These are profile 5 (5”) coloured roof sheets which are upto 20% thicker than our competitors.

Alternatively why not enhance your building by selecting one of the following roof options:


Brick fronts

Brick Fronts

Hanson Garages have developed a system to manufacture a concrete panel faced with ‘real brick’. This unique method perfectly reproduces the effect of traditionally laid bricks.

The Apex Royale range comes with Real Brick Fronts as standard in a rang of colour options as shown below.

Choose from the range of colours opposite to perfectly match your garage to your home. Alternatively, supply your own bricks and we will create a unique matching look. Under certain circumstances it may be possible to supply a broader range.

ceder-buff golden-rust red-brick Red-wire rustic-brown

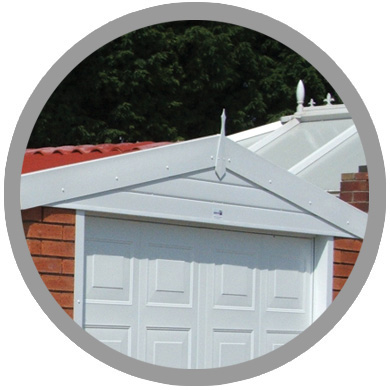

The Apex Royale range comes with PVCu fascias as standard.

The fascias options on all buildings are available in Timber, PVCu (White, Golden Oak & Rosewood) and Plastic Coated Steel (choice of all British Standard colours).

Choose from the options below to create your ideal garage.

Knight-PVCu Knight-Timber Plastic-coated-steel


Guttering & Foam Filler

Guttering is available in Brown, White and Black

The Apex Royale range comes with PVCu white guttering as standard which includes downpipes where needed.

Brick Cladding

Brick Cladding

New, innovative and exciting. Our ‘joint free’ brick cladding is durable, long lasting and above all, maintenance free so it will look good in years to come.

The brick cladding is designed as an exterior cladding finish over the concrete panels, this product is both durable and long lasting that will look good for years to come. It’s cost effective too, compared to traditionally laid brick in terms of money and installation time. No joints, a choice of colours and full brick effect makes this product an exceptional looking garage.

Benefits include:

  • Look – ‘No jointing strips’ down the side of the building
  • Continuous Brick Clad finish reproducing a traditional brick garage
  • Optional cladding of the front and/or back gables for a full brick effect garage
  • Matching brick corners / edgings (No flashings)
  • Choice of 7 colours/finishes to choose from
  • Option for stone effect finish
  • Hybrid available – Possible to clad just 1, 2 or 3 sides of the building
  • Available on all concrete garages and sheds/workshops
  • Cost effective compared to traditionally built brick in terms of time and money
  • Durable and long lasting
  • Maintenance Free

Page 2 Main Photo 1 (Medium)Concrete GaragesConcrete Garages Concrete Garages Concrete Garages  Concrete Garages  SO-1572 (1) (Medium) SO-1572 (2) (Medium) Concrete GaragesSO-1572 (3) (Medium)

Whats Included with your Hanson Garage?

We all want to know that our purchase is going to be great value for money – with Hanson Concrete Garages all this comes as standard.

  • 10 Year Guarantee, giving you peace of mind knowing that you are covered against any structural faults.
  • Hanson Concrete Garages Customer Charter, ensuring that you receive the best possible service.
  • UNIQUE PANEL DESIGN – cleverly designed overlapping panel joints give a weatherproof seal.
  • Panels bolted together with three galvanised bolts, other competitors use only two – extra strong.
  • Attractive Multi Spar aggregate external finish on the panels, designed to blend with most UK properties.
  • Flexible range, probably the most flexible in the UK. Tell us what you want and we can normally build it! Widths as standard up to 30’3″, length as long as you like, with height up to 16ft.
  • Fully trained Driver and Installation teams, employed not sub contract, with quality control procedures in place to ensure consistently high standards for you.
  • Fitted with market leading Hormann steel up and over door, pre framed to ensure ease of use.
  • All timber components, windows, fascias and verge boards are factory treated by being fully dipped in preservative after assembly, to prolong their life.
  • Nice people to deal with! – “The answer is yes, now what’s the question?” – it’s good to feel wanted as a customer!
  • Market leading fibre cement roof sheets, up to 20% thicker than some suppliers, guaranteeing you longer life AND with a choice of 5 colours, if you want.
  • Recommend a Friend scheme – earn Marks & Spencer vouchers when you Recommend A Friend or Family member.

Hanson’s 10 Year Guarantee

Hanson Garages guarantee the structural integrity of your new concrete garage for 10 years from the date of installation.

If any structural component fails in your concrete garage, we will either replace it, or carry out a repair free of charge. The guarantee is subject to maintenance being carried out in as described in the Care and Maintenance instructions issued when your building was built.

Click to download our Customer Care Pack.

For further details on our comprehensive guarantee – call 01977 695111 or contact us online and we will be happy to answer your questions.

Apex Royale - Whats Included

Interlocking Panels

Hormann Georgian Door

Four Point Locking


'True Brick' Front Posts

Real Brick Fronts

Personnel Door - Steel

White PVCu Windows

PVCu Fascias & Guttering

Coloured Roof (Spanish Red)
